Features:-

>THX-888 Amplification Module.

>Patented Feed-Forward Error Correction Technology.

>CNC Milled Aluminium Body.

>4-Pin XLR Balanced Headphone Output.

>6.35mm Unbalanced Headphone Output.

>Two Gain Levels(Low: 0dB, High: 10dB).

>Highly Efficient Low-Noise Power Supply.

>1.9” LCD Display.

Technical Specs:-

>Output Power: 6Wx2 @ 16Ω, 3Wx2 @ 32Ω, 440mWx2 @ 300Ω, 220mWx2 @ 600Ω.

>Signal To Noise Ratio: 137dB.

>Output Noise: 1.9uV, A-Weighted.

>THD N: -123dB, 0.00006%(A-Weighted).

>THD N: -117dB, 0.00013%(20Hz-20kHz, 32Ohm, -3dB).

>THD N: -125dB, 0.00006%(1kHz, 16Ω, -3dB).

>Input Impedance: 47kΩ.

>Output Impedance: Near 0Ω.

>Frequency Response: 0.1Hz-500kHz(-3dB).

>Power supply voltage/frequency: AC100-240V, 50-60 Hz.

>Power consumption(EN60065): 24W.

>Power consumption in standby mode: <0.1W.

>Size: 187.5x154x40(mm).

>Packing size: 282x232x79(mm).

>Weight: 790g.

SMSL has released its latest desktop amplifier, the SMSL SH-9. It is a high-performance fully balanced amplifier with THX AAA-888 amplification circuit and offers both balanced and unbalanced input and output options.

Certified THX AAA-888 Amplification Circuit:-

The SMSL SH-9 is equipped with a certified THX AAA-888 amplification circuit. THX AAA(Achromatic Audio Amplifier) ensures an ultimate sound quality experience with supreme power, ultra-low levels of noise-floor, distortion, and power consumption.

Patented Feed-Forward Error Connection Topology:-

The THX AAA-888 amplification circuit inside the SH-9 features a patented feed-forward error connection topology. It nullifies conventional distortion mechanisms and results in a high-fidelity sound quality experience for its users.

Fully Balanced Architecture:-

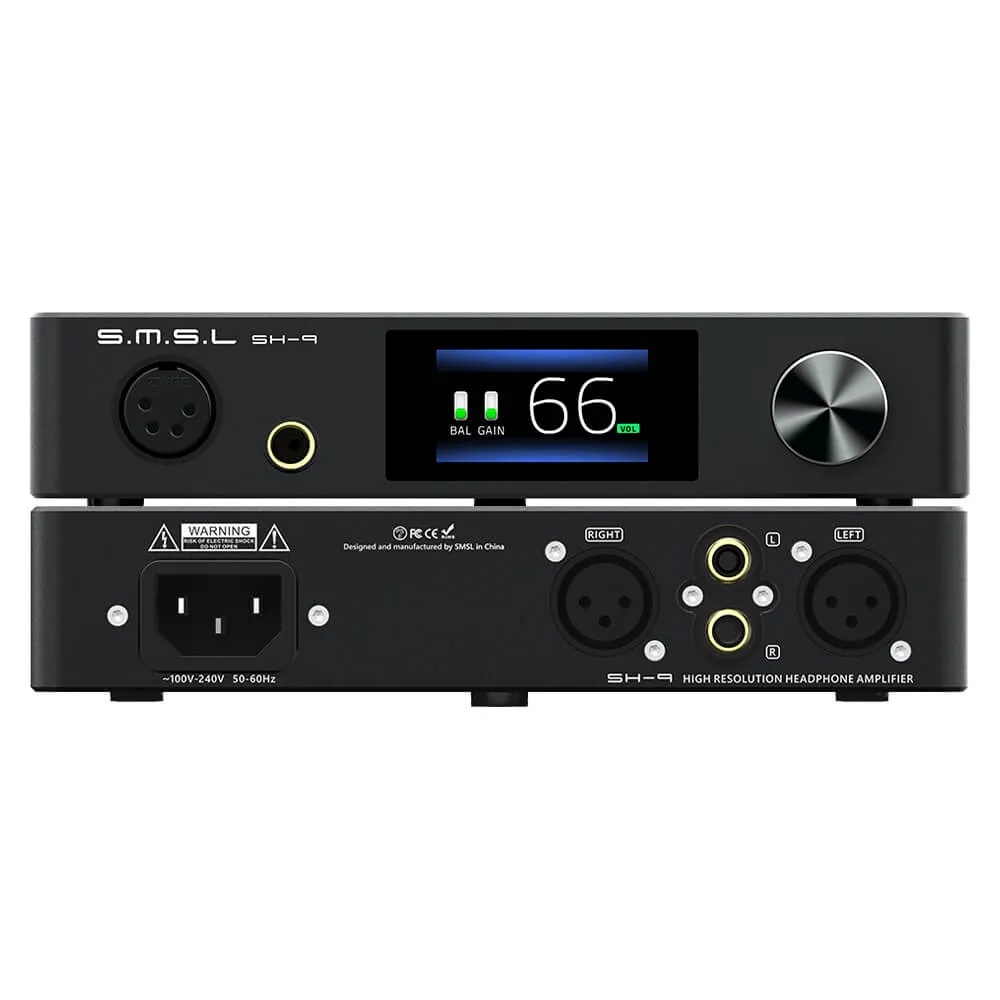

The SMSL SH-9 consists of a balanced circuitry for the audio signal amplification. It has both balanced and unbalanced input-output ports. It houses a balanced XLR signal input along with unbalanced RCA input. So you can connect it to your DAC systems without any trouble. For output, the SH-9 features a 4-pin XLR balanced port and a 6.35mm unbalanced port.

PowerHouse For Your Headphones:-

Are you getting trouble powering your headphones? Don't worry anymore, we got your covered. The SMSL SH-9 is a highly capable device with humongous output power. It has a monstrous power rating of up to 6Wx2 @ 16Ω, 3Wx2 @ 32Ω, 440mWx2 @ 300Ω, and 220mWx2 @ 600Ω. This is more than enough to power up your most demanding headphones without any trouble.

High-Precision Volume Adjustment:-

The SMSL SH-9 features a high-precision 256-interval analog volume adjustment built on a resistance array. This ensures precise volume adjustment with your headphones and IEMs. Yes the SH-9 has an ultra-low output impedance of nearly 0Ω, so you can use sensitive IEMs with the SH-9.
