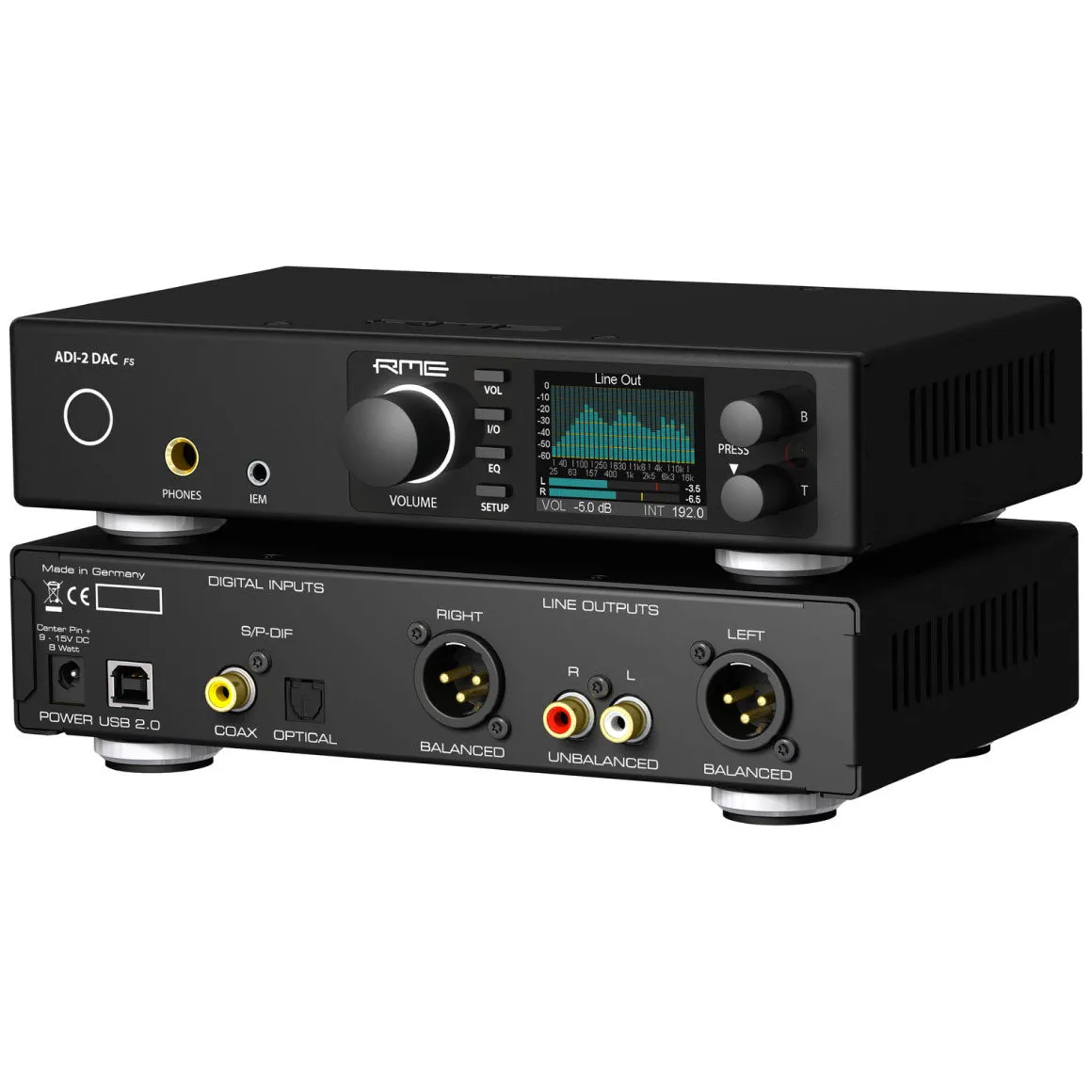

RME - ADI-2 DAC FS
RME - ADI-2 DAC FS
Title:
  • DefaultTitle

$ 69.63

$ 53.56

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

DESCRIPTION

IDEAL FOR HOME MUSIC LISTENING AS WELL AS STUDIO REFERENCE APPLICATIONS

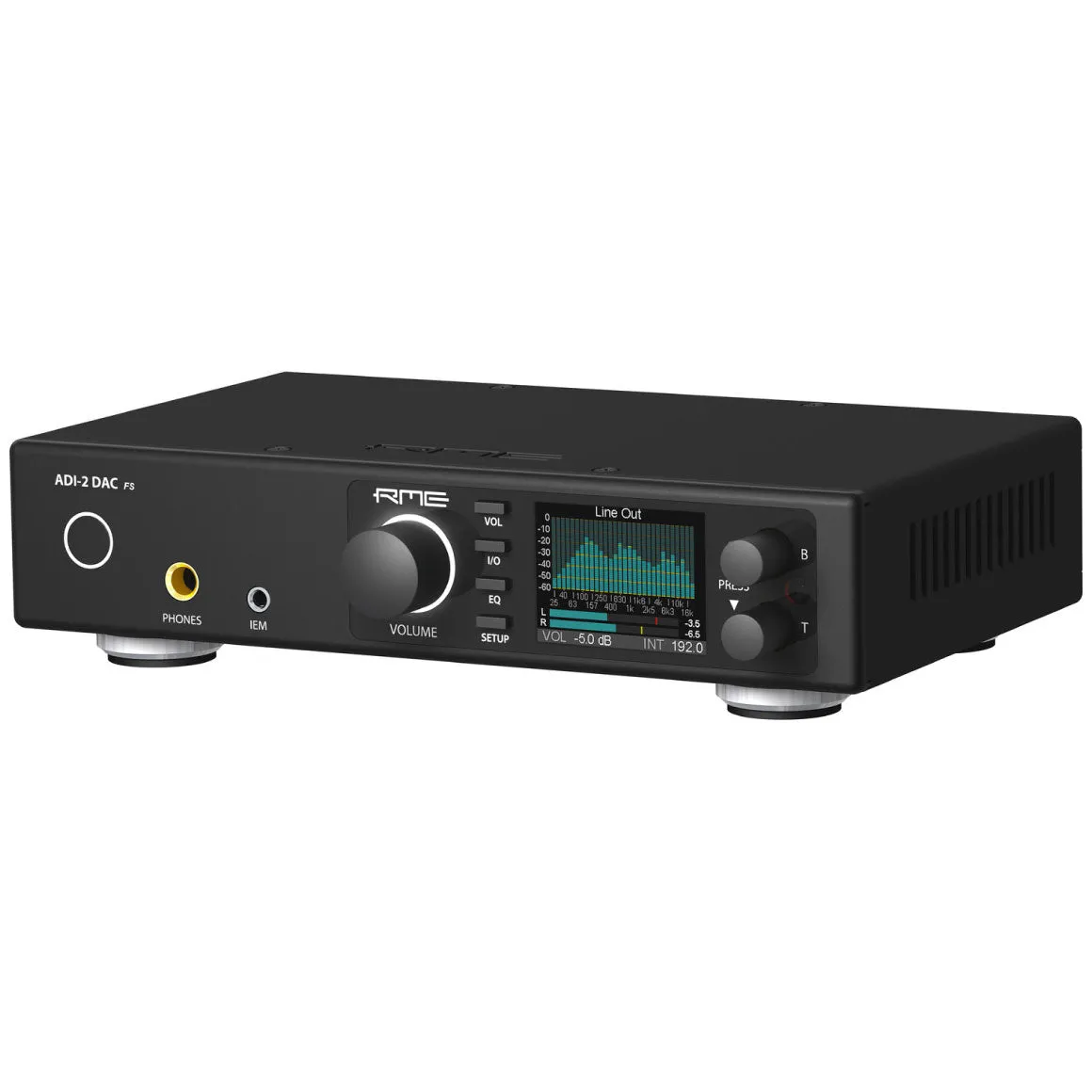

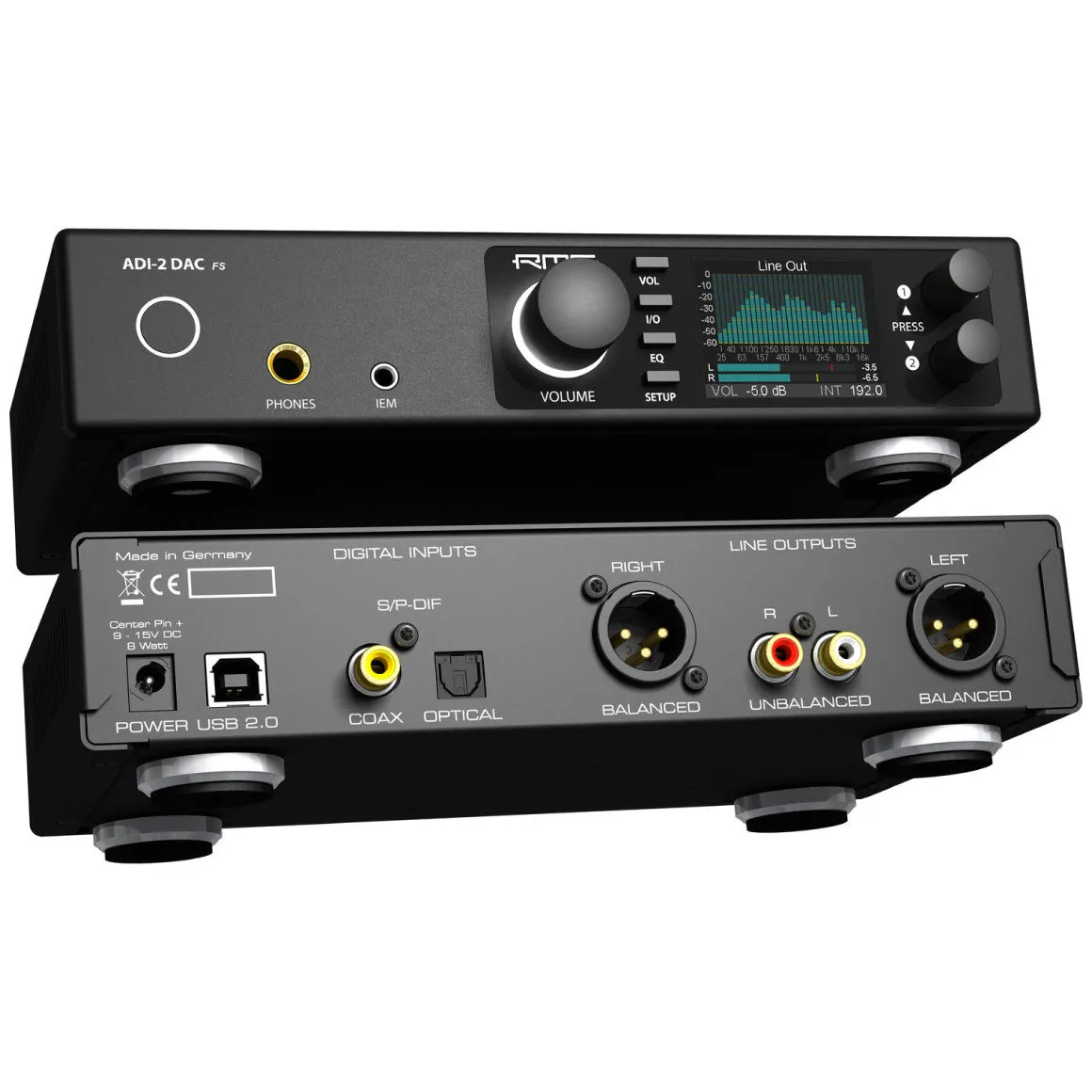

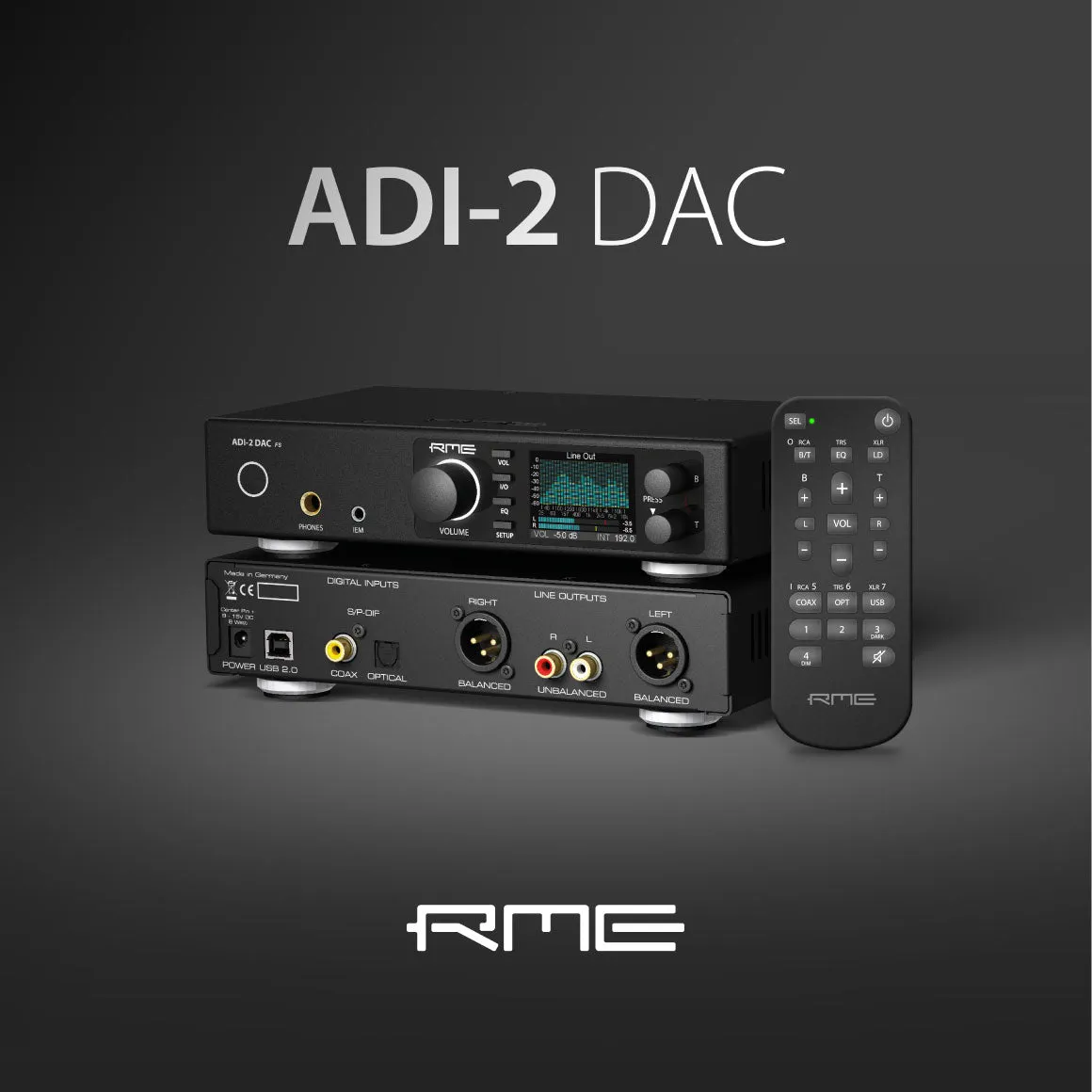

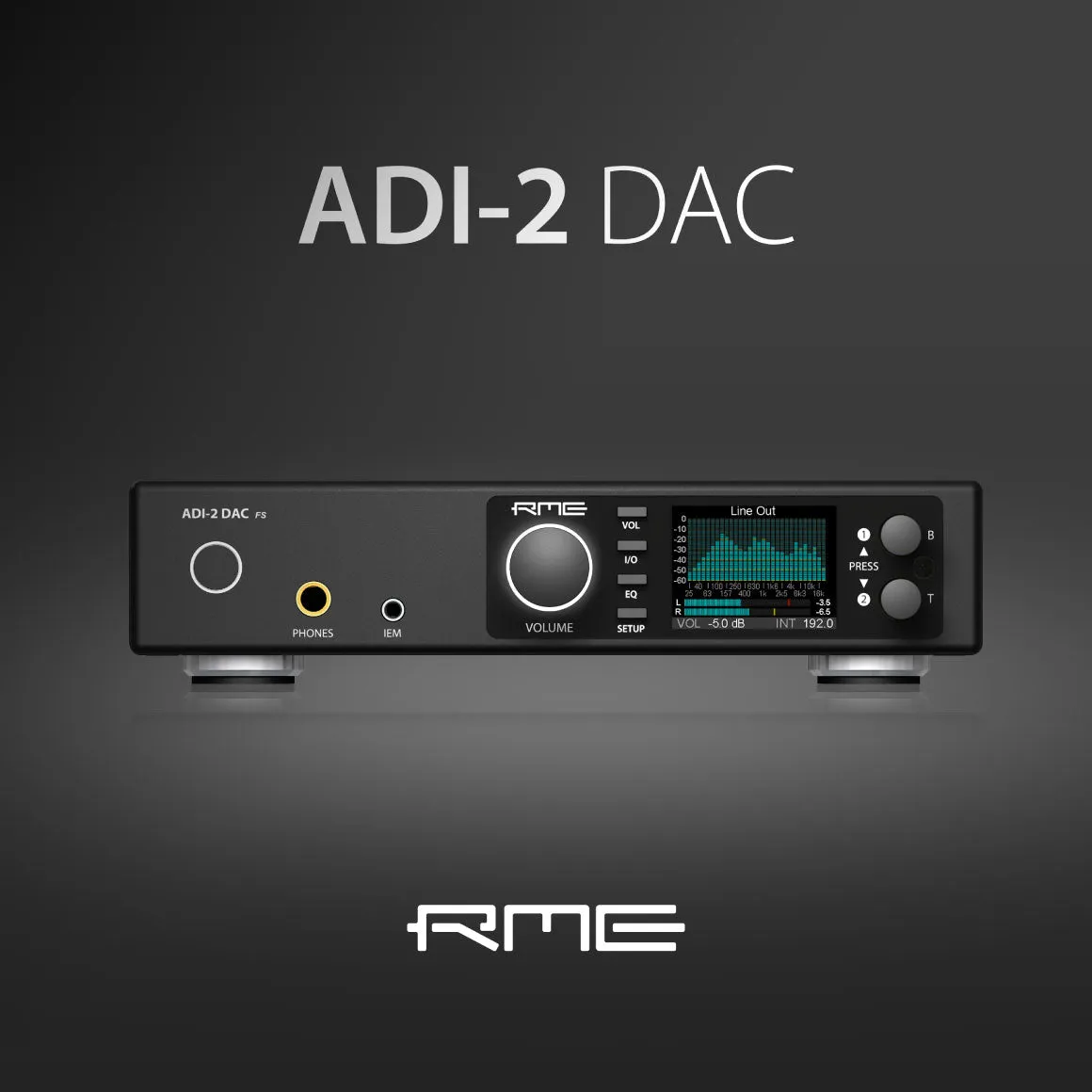

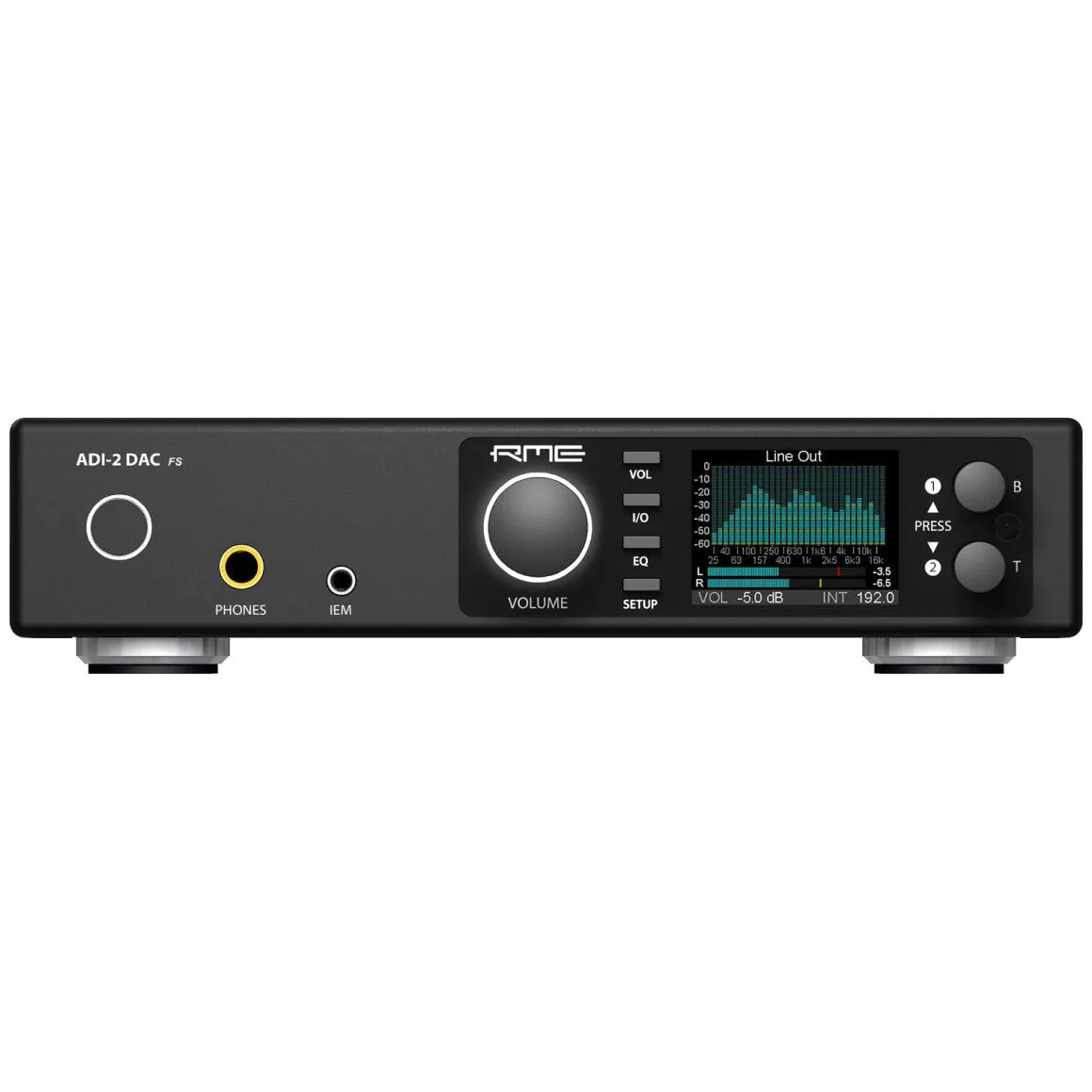

The ADI-2 DAC FS comes with a lot of enhancements including a robust SteadyClock, a fine-tuned analogue circuitry, a useful MRC remote control along with a powerful headphone output and a dedicated IEM output. It also embraces the best features of its predecessor like the transparent sound signature, DSP Processing and a 5-Band Parametric EQ. Overall, the ADI-2 DAC FS is a DAC with a stunning design and is designed for simplified operation making it perfect for home as well as studio applications.

A CRITICALLY ACCLAIMED, ALL ROUND DAC FOR A POWERFUL SONIC PERFORMANCE

Taking the ADI-2 Pro a notch higher, the ADI-2 DAC FS features an upgraded, high-end AD/DA converter with two outputs for headphones and IEMs each and efficient remote control. The background noise and other forms of audio distortions are taken care of by the advanced analogue output stage. This all-round setup allows the ADI-2 DAC FS to function as a reference DAC and it has been acclaimed by critics for its sound, dynamics and technical features.

DESIGNED FOR AN ENHANCED AND DISTORTION FREE AUDIO OUTPUT

AKM's AK4493 chipset is used in the updated ADI-2 DAC FS which is backed by a specially designed circuit aiding the chip to deliver excellent performance. The noise levels are minimised to 123 dBA, distortion to less than -120 dB, and THD N to -116 dB. The IEM output is at -121 dBu which is the world's lowest noise through the headphone output. To improve things further the ADI-2 DAC FS gives a 4 dB of digital headroom allowing you to enjoy your music even on high volumes without any audible distortion. The volume setting is now reserved to offer undistorted analogue signal output. This DAC offers a new selectable digital filter along with a low dispersion feature.

OFFERING SUPER LOW NOISE OUTPUT FOR HIGHLY SENSITIVE IEMS

Modern highly sensitive IEMs often face issues like floor noise and other kinds of audio distortions. The ADI-2 DAC FS uses RME powered IEM output which brings down the noise floor to an exceptional 10 dB. Even the output impedance is near zero ohms while the Total Harmonic Distortion (THD) reaches new record lows. With click-free on/off and volume ramp-up option, you can use this DAC with any IEM without losing on the sound quality.

THE MOST REQUESTED FEATURE OF AN AUTODARK MODE IS HERE

AutoDark mode is among the most requested features by users of the previous ADI-2 Pro. Under the AutoDark mode, the display, function keys, standby button and volume knob will go off if there is no user operation for 10 seconds. If you touch any button or control the lights will turn on for 10 seconds. You can easily turn the AutoDark mode off and if you touch any button on the remote, the lights will stay on for 3 seconds.

CONTROL UNDER YOUR FINGERTIPS WITH MULTI-REMOTE SUPPORT (MRC)

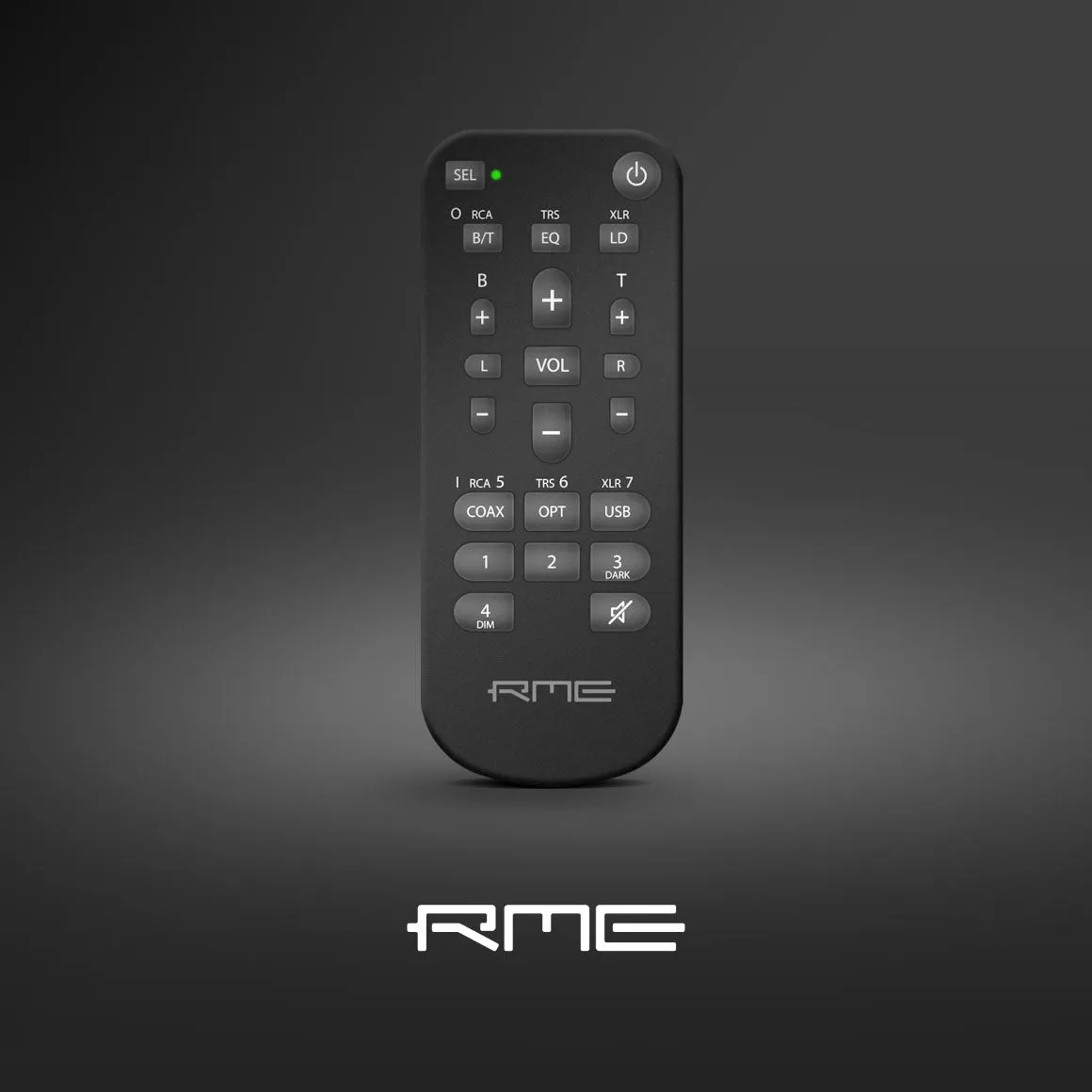

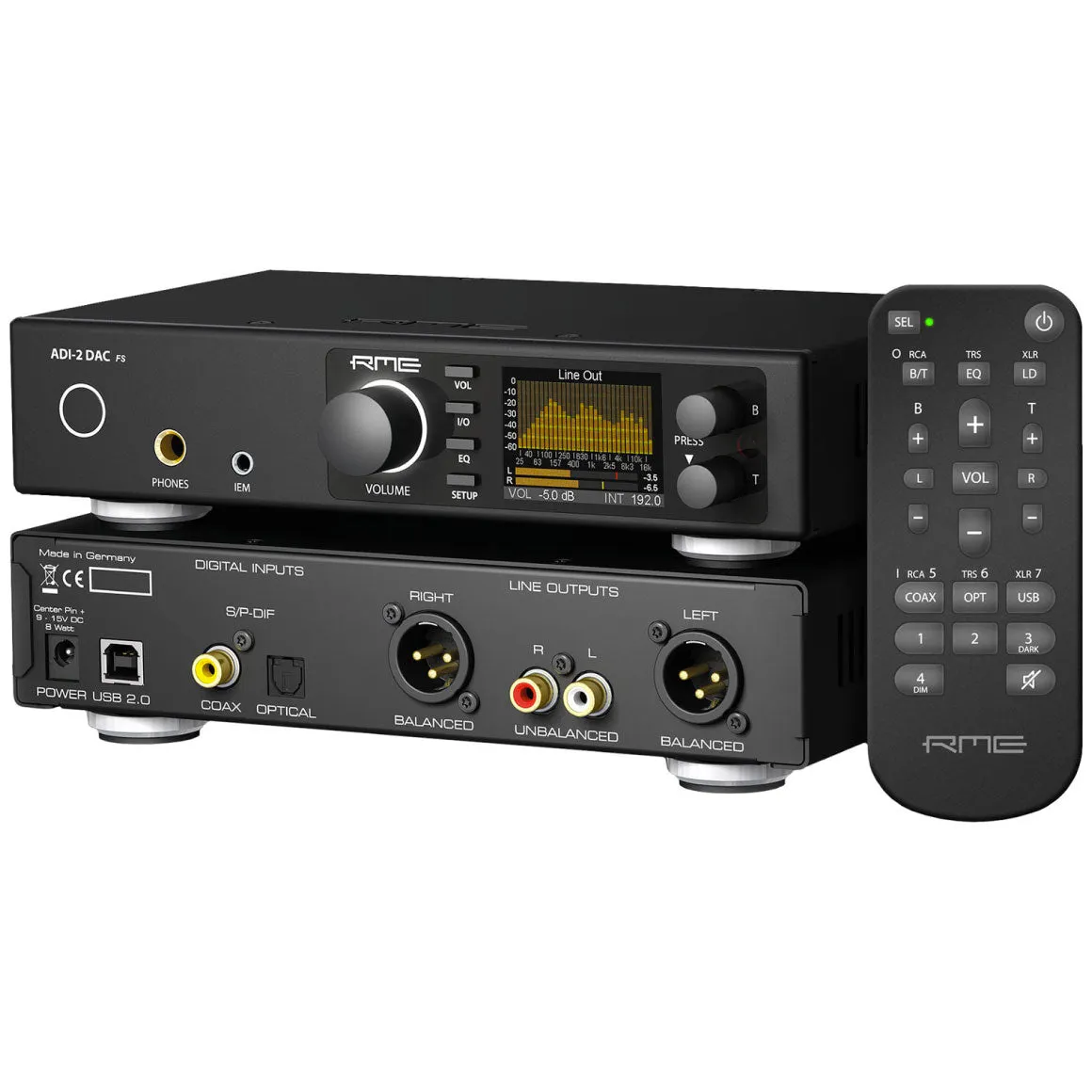

The ADI-2 DAC FS is equipped with a carefully designed remote enabling you to efficiently manage your DAC. This remote has well-defined buttons which can be read clearly even in low light conditions. These ergonomically designed buttons are well spread out and are placed in a manner which makes it easy for you to remember. There are dedicated buttons for standby on/off, volume, balance, bass and treble, input selection (optical, coaxial, USB), mute, on/off loudness, bass/treble and EQ. For more versatility, 4 programmable buttons allow you to access 32 different functions and commands. This remote is not just an add-on accessory but a sophisticated tool to help you manage your DAC the way you want to.

INTEGRATION OF STEADYCLOCK FS FOR RELIABLE AND UNCOMPROMISED PERFORMANCE

Over the years, the SteadyClock FS has been acclaimed for its exceptional performance in various RME devices. SteadyClock is a part of the ADI-2 DAC FS assuring that the integration of an internal clock yields as good of a result as an external clock. It gets rid of internal jitter to a record low level and efficiently manages to handle all kinds of digital interface formats. The design and functions are so flawless that it was adopted into the ADI-2 DAC as it is.

A BIT TEST TO ENSURE NOTHING HINDERS THE OUTCLASS PERFORMANCE

To make sure that the playback path is free of unnecessary changes in the playback data, a bit test is used. This test checks for proper channel assignment, left/right synchronicity and polarity. It also highlights cuts in bits, the presence of audio dither or other undesirable changes that can hinder the performance. The Bit test not only highlights these errors but also ensures that these errors are removed from the system for unrivalled performance.

SPECS

GENERAL SPECIFICATIONS
INCLUDED POWER SUPPLY external switching PSU, 100 - 240 V AC, 2 A, 24 Watts
STANDBY POWER CONSUMPTION 120 mW (10 mA)
IDLE POWER CONSUMPTION 7 Watts
MAX. POWER CONSUMPTION 18 Watts
IDLE CURRENT AT 12 V 570 mA (6.8 Watts)
DIMENSIONS (WXHXD) 215 x 52 x 150 mm (8.5" x 2.05" x 5.9")
WEIGHT 1.0 kg ( 2.2 lbs)
TEMPERATURE RANGE 5° up to 50° Celsius (41° F up to 122°F)
RELATIVE HUMIDITY < 75%, non condensing

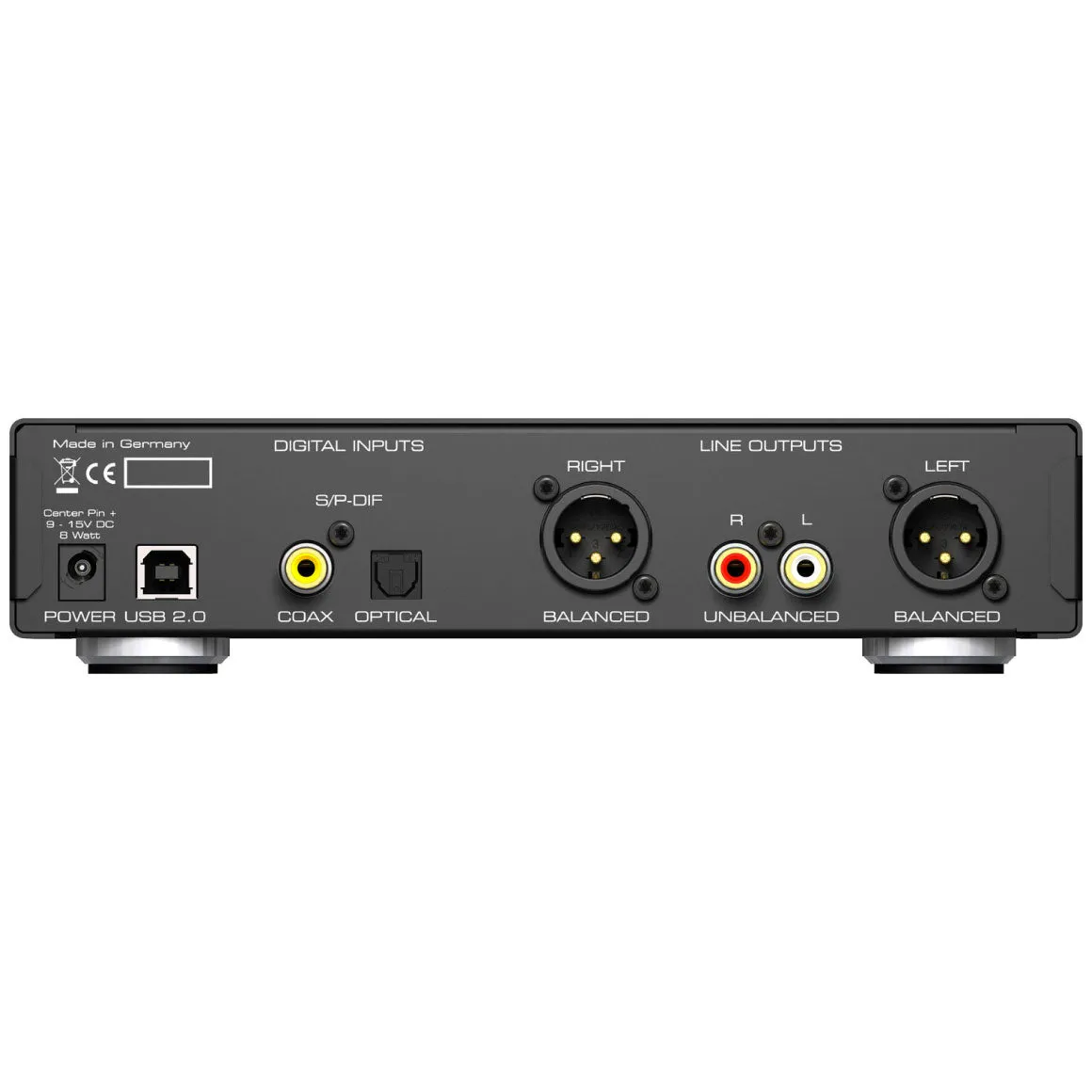

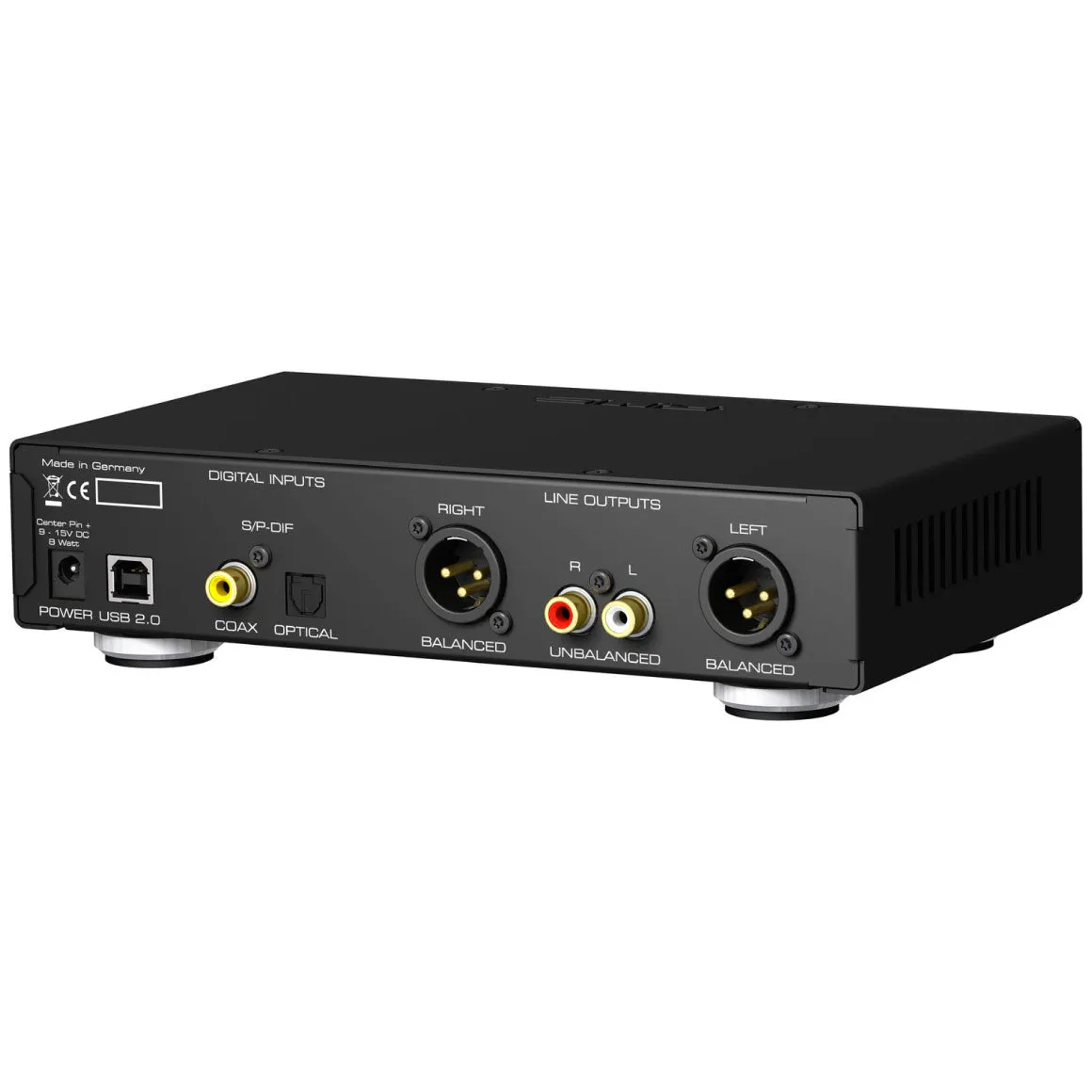

DIGITAL INPUTS
GENERAL Lock Range: 28 kHz – 200 kHz
Jitter suppression: > 50 dB (2.4 kHz)
Jitter when synced to input signal: < 1 ns
Accepts Consumer and Professional format
SPDIF COAXIAL 1 x RCA, according to IEC 60958
High-sensitivity input stage (< 0.3 Vpp)
AES/EBU compatible (AES3-1992)
SPDIF OPTICAL 1 x optical, according to IEC 60958
ADAT compatible
ANALOGUE OUTPUTS
XLR Output level switchable 19 dBu, 13 dBu, 7 dBu, 1 dBu @ 0 dBFS
Signal-to-noise ratio (SNR) @ 7/ 13/ 19 dBu: 120 dB RMS unweighted, 123 dBA
Signal-to-noise ratio (SNR) @ 1 dBu: 117 dB RMS unweighted, 120 dBA
Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.2 kHz
Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 44.9 kHz
Frequency response @ 192 kHz, -1 dB: 0 Hz – 88 kHz
Frequency response @ 384 kHz, -1 dB: 0 Hz – 115 kHz
Frequency response @ 768 kHz, -3 dB: 0 Hz – 109 kHz
THD @ 0 dBFS: < -120 dB, 0.0001 %
THD N @ 0 dBFS: -117 dB, 0.00014 %
THD @ -3 dBFS: -116 dB, 0.00016 %
Channel separation: > 120 dB
Output impedance: 200 Ohm balanced, 100 Ohm unbalanced
RCA OUTOUTS As XLR outputs but:
Output: 6.3 mm TS jack, unbalanced
Output level 6 dB lower than XLR (-5 dBu to 13 dBu @ 0 dBFS)
Signal-to-noise ratio (SNR) @ 13 dBu: 120 dB RMS unweighted, 123 dBA
Signal-to-noise ratio (SNR) @ 1/ 7 dBu: 115/118 dB RMS unw., 118/121 dBA
Signal-to-noise ratio (SNR) @ -5 dBu: 110.5 dB RMS unweighted, 114 dBA
PHONES As RCA outputs but:
Output: 6.3 mm TRS jack, unbalanced, stereo
Output impedance: 0.1 Ohm
Signal-to-noise ratio (SNR) @ 22 dBu: 120 dB RMS unweighted, 123 dBA
Signal-to-noise ratio (SNR) @ 7 dBu: 118 dB RMS unweighted, 121 dBA
Output level at 0 dBFS, High Power, load 100 Ohm or up: 22 dBu (10 V)
Output level at 0 dBFS, Low Power, load 8 Ohm or up: 7 dBu (1.73 V)
THD @ 18 dBu, 32 ohm load, 1.2 watts: -120 dB, 0.0001 %
THD N @ 18 dBu, 32 Ohm Load: -114 dB, 0.0002 %
THD @ 14 dBu, 16 Ohm load, 0.94 Watt: -110 dB, 0.0003 %
Max power @ 0.001% THD: 1.5 W per channel
IEM As Phones but:
Output level at 0 dBFS: -3 dBu, 0.55 V
Signal-to-noise ratio (SNR) @ -3 dBu: 117 dB RMS unweighted, 120 dBA
Max power, 8 Ohm, 0.001% THD: 40 mW per channel
DIGITAL
CLOCKS Internal, SPDIF In
LOW JITTER DESIGN < 1 ns in PLL mode, all inputs
INTERNAL CLOCK < 800 ps Jitter, Random Spread Spectrum
JITTER SUPPRESSION OF EXTERNAL CLOCK > 50 dB (2.4 kHz)
EFFECTIVE CLOCK JITTER near zero
SUPPORTED SAMPLE RATES FOR EXTERNAL 28 kHz up to 200 kHz
INTERNALLY SUPPORTED SAMPLE RATES 44.1 kHz up to 768 kHz
IN THE BOX
BOX CONTENTS 1. RME ADI-2 DAC FS
2. Remote control (MRC) with battery
3. External switched power supply, lockable connector, DC 12 V 24 W
4. Power cord
5. USB cable, 1.8 m (6 ft)
6. Manual

DOWNLOADS

  • Warranty & MEDIA REVIEWS

    1 Year Warranty

    Don't sweat it, this RME ADI-2 DAC FS comes with a 1 year warranty from RME that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.
